CMT 1325

CMT 1325

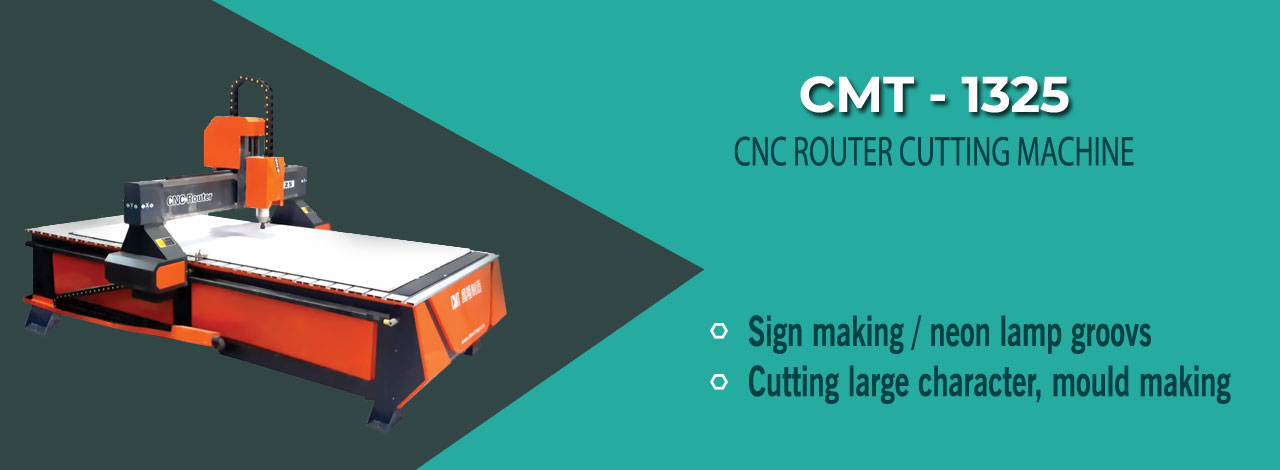

CMT 1325 : CNC ROUTER CUTTING MACHINE

1. Five axis linkage side rail positioning

2. Professional for outdoor indoor quality advertising letters, signs and lamp house, like led aluminium letters,metal letters,trimless letters, the resin luminous letters.

3. Smooth and delicate cutting low noise stable performance.

4. One button operation and cost effective is your first choise of economical and practical device.

5. Application industries : sign making/ neon lamp grooves ,cutting large characters,mould making etc

CMT 1325 : MACHINE PARAMETERS

CMT 1325
  • Table surface : Aluminium

  • Body structure : Steel structure

  • Machine weight : 1500kg

  • Max. power : 1.84kw

  • Max rapid travel rate : 15000mm/min

  • Max.working speed : 10000mm/min

  • Drive motor : Stepper motor

  • Spindle power : 3kw

  • Invertor : 3kw bsd

  • Command : g-code .u00*mmg*plt

  • Working voltage : ac220v/single phase/50hz

  • Application material : mdf, pvc, acrylic sheet, acp
