GS-24 Desktop Cutter

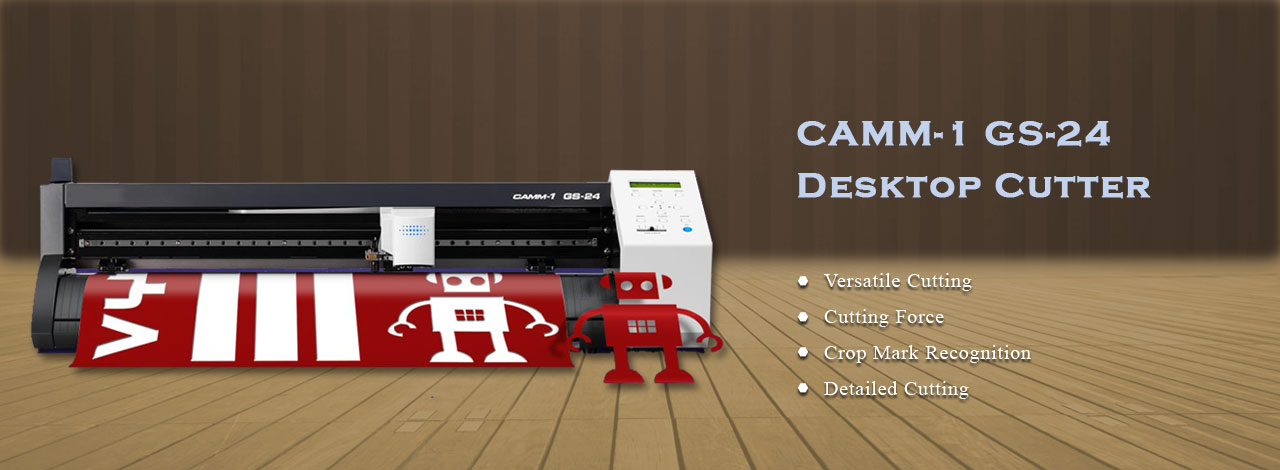

CAMM-1 GS-24 Desktop Cutter

The Adcom CAMM-1 GS-24 desktop cutter is precision and efficiency to the max. With a completely redesigned cutting carriage and blade holder, the GS-24 offers great stability, up to 10x overlap cutting and down force of up to 350 grams so that you can cut like never before — even on thick, dense substrates. The GS-24 is Roland's best desktop cutter ever.

We've Redefined "Cutting Edge"

Cut vehicle graphics, signs and decals, decorated apparel and specialty graphics with the fast and intelligent cutting capabilities of the GS-24 desktop cutter. Enjoy overlap, perforation, printer crop mark recognition and other advanced features, all backed by an industry leading 3-Year Trouble-Free Warranty.

Distinguishing Features

  • Perfect for cutting vinyl, paint mask, reflective vinyl, twill, heat transfers, sandblast material and more

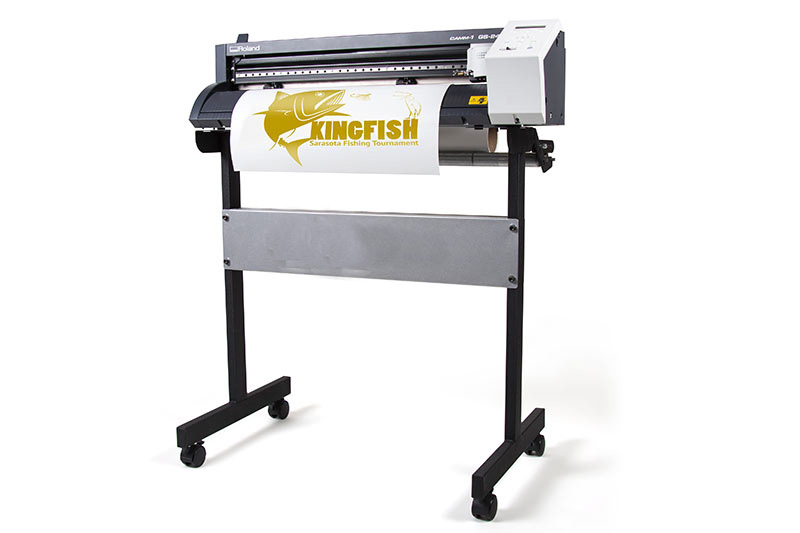

  • Stand included with purchase that holds roll media and offers smooth set up
  • Overlap cutting (up to 10x), for cutting thicker media like magnetic materials and card stock
  • Efficiently cuts up to 20-inches-per-second, providing maximum productivity
  • Roland CutStudio software (included)
  • Three-Year Trouble-Free Warranty

CAMM-1 GS-24 Desktop Cutter Features

It's All Material

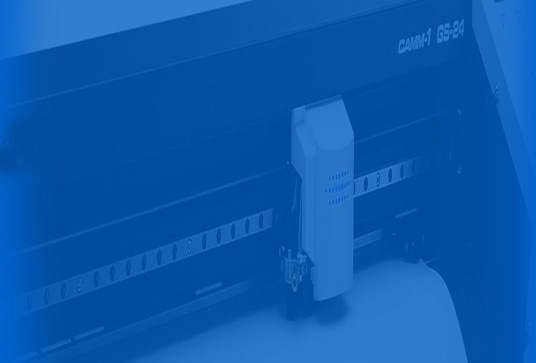

With its completely re-designed cutting carriage and blade holder, the GS-24 Desktop Cutter isn't just for vinyl cutting. The GS-24 accepts a wide range of materials, 2-inches to 27.5-inches wide, including:

  • Vinyl
  • Paint mask
  • Heat transfer material
  • Sandblast material
  • Twill...and much more.

Keep it Simple

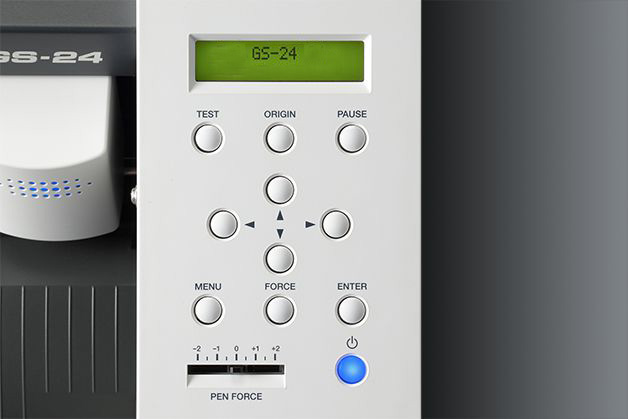

With a newly-designed LCD panel, precise blade groove on its apron for easy manual cutting, an included roller base that keeps feeds straight, and a handy stand to comfortably hold roll media, the GS-24 Desktop Cutter is as easy to use as it is technologically-advanced.

Strength Comes from Within

IGS-24 flexes its muscles with up to 350 grams of force (a 39.5% increase over its predecessor) –making cutting and weeding thick substrates like magnetic materials a piece of cake.

Measure Once, Cut 10-times

The GS-24 features state-of-the-art overlap cutting (up to 10x), plus half or perforated cutting, and the ability to cut by line color. Once complicated workflows are now easier than ever.

Crop Mark Recognition

With included optical registration system, the GS-24 recognizes desktop printer crop marks, perfectly aligning the media to create, precise cuts each and every time.

Small Details, Big Results

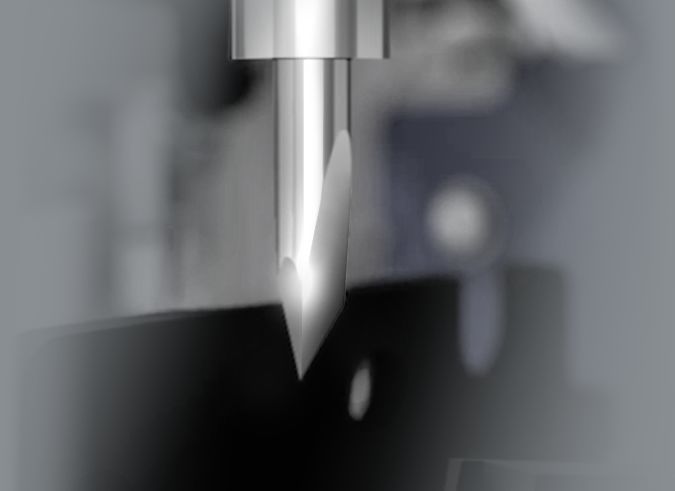

With the GS-24, blade offset values can be adjusted manually – which means that even the smallest, most intricate designs will be cut flawlessly on a multitude of materials.

Speed That's Spot On

Thanks to a highly innovative digital servomotor, the GS-24 can handle vinyl cutting assignments, as well as cutting jobs involving other types of materials, at speeds of up to 20 inches per second. But speed without accuracy doesn’t mean anything. That’s where our curve-smoothing function comes in—precisely cutting at the highest speeds to optimize productivity and efficiency.

Meet the Maestro

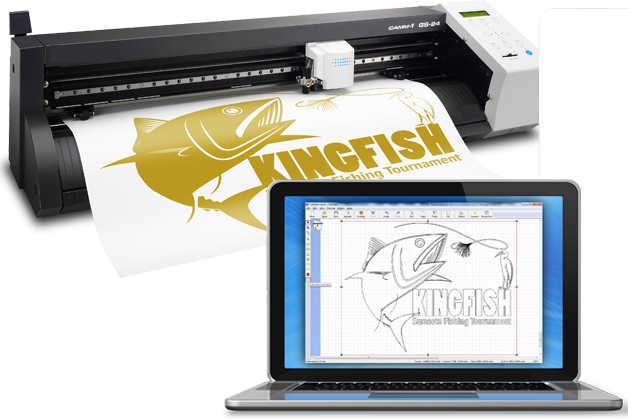

Included Adcom CutStudio software is specially-designed to harmoniously work with Roland cutters, allowing you to quickly, easily, and effectively output cut graphics, including resizing, repositioning, rotatnig, and mirroring images. The GS-24 also cuts oversized images using a using an improved tiling function, and cuts true type fonts without the need for outlining. CutStudio supports BMP, JPG, STX, AI, and EPS file formats, and can cut directly from Adobe Illustrator or Corel Draw.

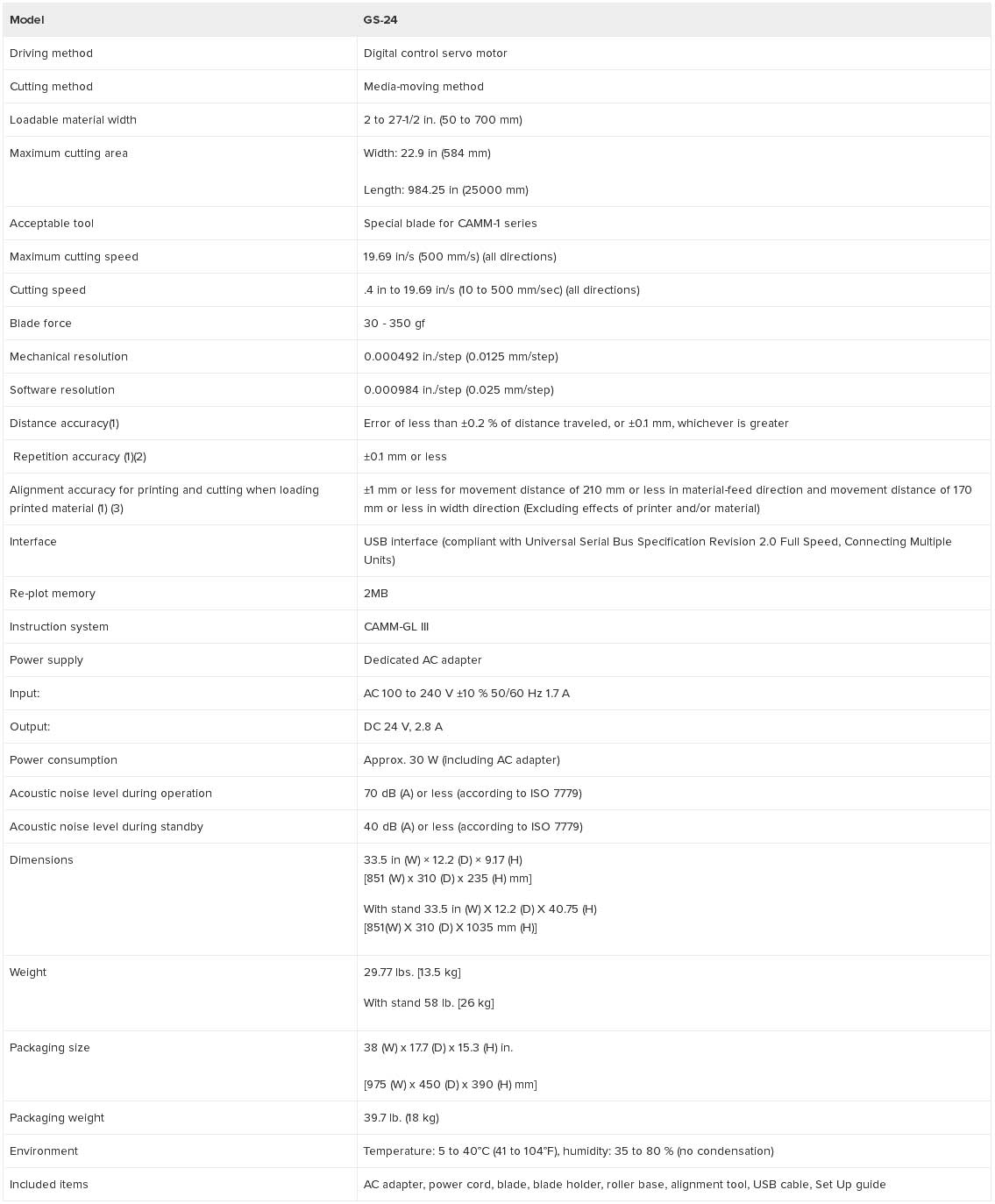

SPECIFICATION

specification

1: According to material and cutting conditions as specified by Roland DG Corp. (using the PNS-24 stand, sold separately).

2: Excluding material expansion and contraction. Provided that media length is under 1600 mm.

3: Using Roland CutStudio, a laser or inkjet printer having a resolution of 720 dpi or better. Excluding glossy or laminated material. Excluding effects of printing distortion due to printer precision and effects of material expansion, contraction, or warping. Depending on the ink (black) employed by the printer used, correct sensing may not be possible.
