CMT L160

CMT L160

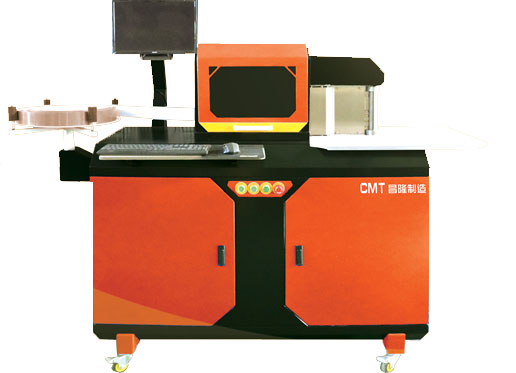

CMT L160 : ALUMINIUM BENDING MACHINE

1. Automatic temperature control simple operation . one key automatic constant temparature, one key start solidification.no matter winter or summer stability is good.

2. appearance design highest standard material bis fastidious. Adopt 1.5- 2.5mm galvanized iron plate the housing case is solid and stable no deformation uv lamp with oriinal Philips lamp forming.

3. Mirror is added at the bottom to remove the dusts.

4. Hydralic technique helps to open the door easily.

CMT L160 : MACHINE PARAMETERS

CMT L160
  • Working principle : Automatic

  • Model : CMT- L160

  • Slot degree : 45-135 degree

  • Bending radius : ‹5mm

  • Material width : ‹160mm

  • Material thickness : 0.3- 1.2 mm

  • Application Material : Aluminium trimcap & trimless

  • Total : 1500w

  • File format : dxl,ai,pit

  • Machine size : 1700*720*1520mm

  • Machine weight : 400kg

  • Voltage : 220v

  • Air pressure : 0.3-0.8mpa
