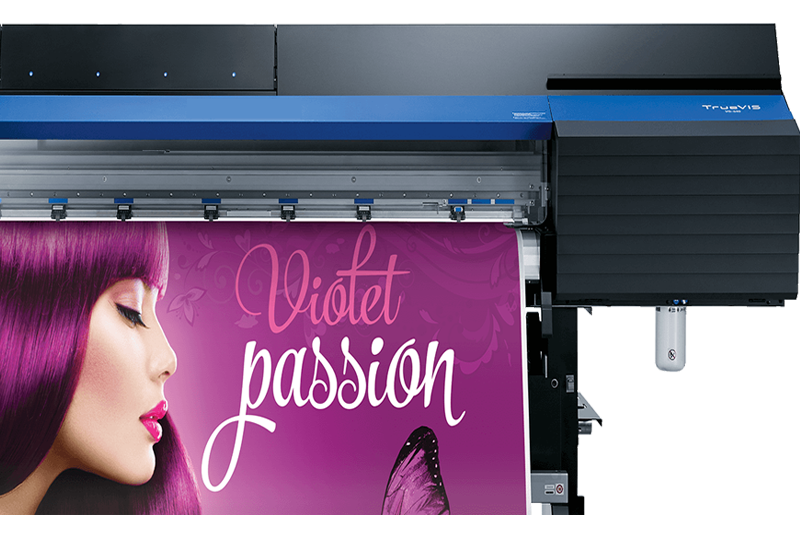

TrueVIS VG-640, VG-540 Large-Format Inkjet Printer/Cutters

With the new TrueVIS VG Series, we didn’t just make a few upgrades to our large-format inkjet printer/cutters – we reimagined everything. New print heads that deliver beautiful prints more efficiently. New inks that are more vibrant and cost-effective. New cutting technology that increases accuracy. New tech to communicate with your existing phones and tablets. And so much more. The future of print/cut has arrived.

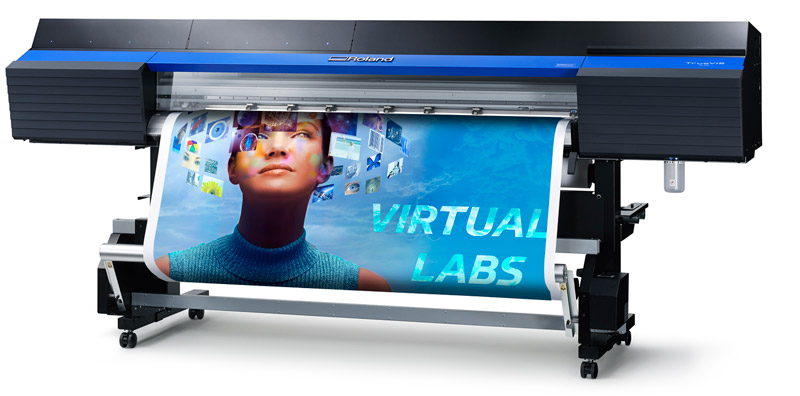

TrueVIS VG 640 Printer/Cutter Features

Vibrant Images and Brilliant Results

Maximum Ink Quality at Minimal Cost

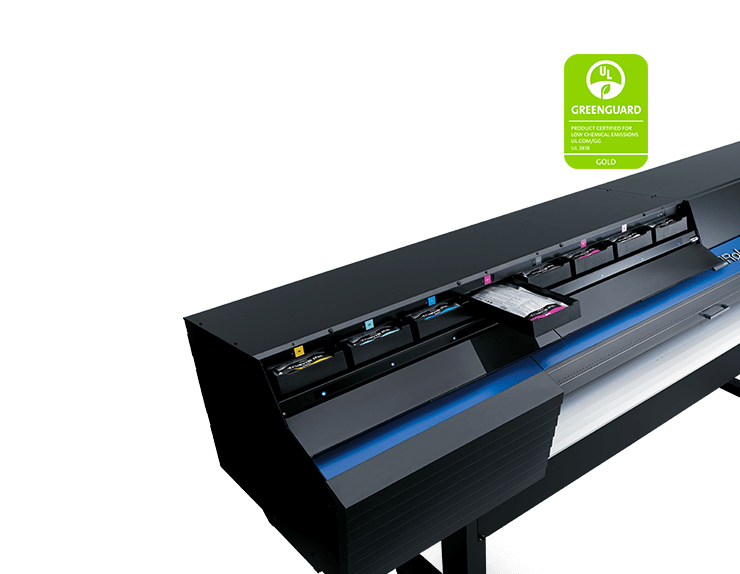

All new TrueVIS INK is a major step forward in eco-solvent technology, delivering a wide color gamut and improved output, while meeting stricter environmental standards and user demands for lower costs, without sacrificing quality. 500ml pouches fit neatly into reusable cartridges and slide into a hidden ink bay for clean usage and less waste. TrueVIS INK is also GREENGUARD Gold certified and does not require any special ventilation or environmental equipment.

TrueVIS INK is available in 500ml pouches in the following configurations:

CMYK(x2) – Dual CMYK for maximum productivity
CMYKLcLmLk – Light Cyan, Light Magenta and Light Black for fine details and smooth gradations
CMYKLcLmLk+W – White ink allows for enhanced printing on dark or clear substrates

Remote Control Your Production with Smart New Tech

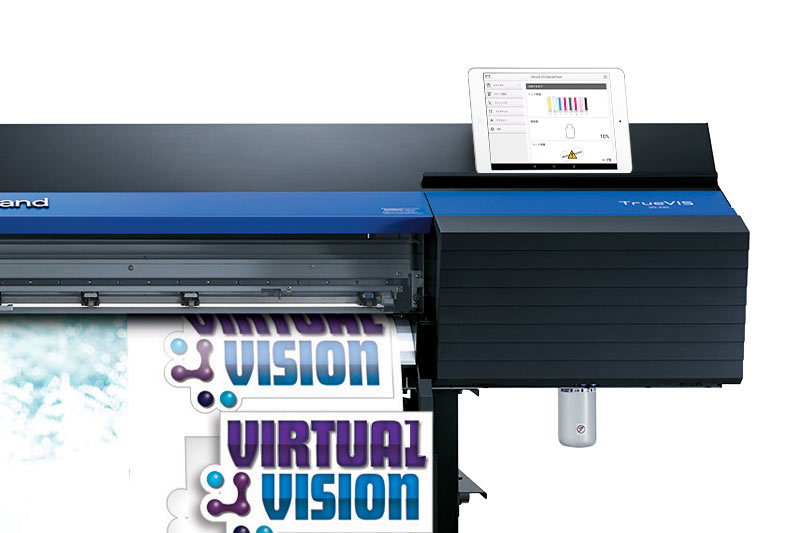

In addition to a built-in control panel, a new Roland DG Mobile Panel allows you to perform control panel functions of VG printer/cutters with your existing smartphone or tablet using a Bluetooth connection. This innovative new feature provides a rich interface directly on, or remotely in range of, your TrueVIS. Receive status updates as well as remotely manage production, test printing, and cleaning functions. Very smart.

Deliver Amazing Results More Effectively and Efficiently

Attractive and rigid new industrial design that minimizes vibrations to optimize printing and cutting.
Illuminated and colored LED lights signal status of the machine.
Improved motor and drive systems add durability for heavy users.
Included take-up and optional drying units boost performance during high-volume, unattended operation.

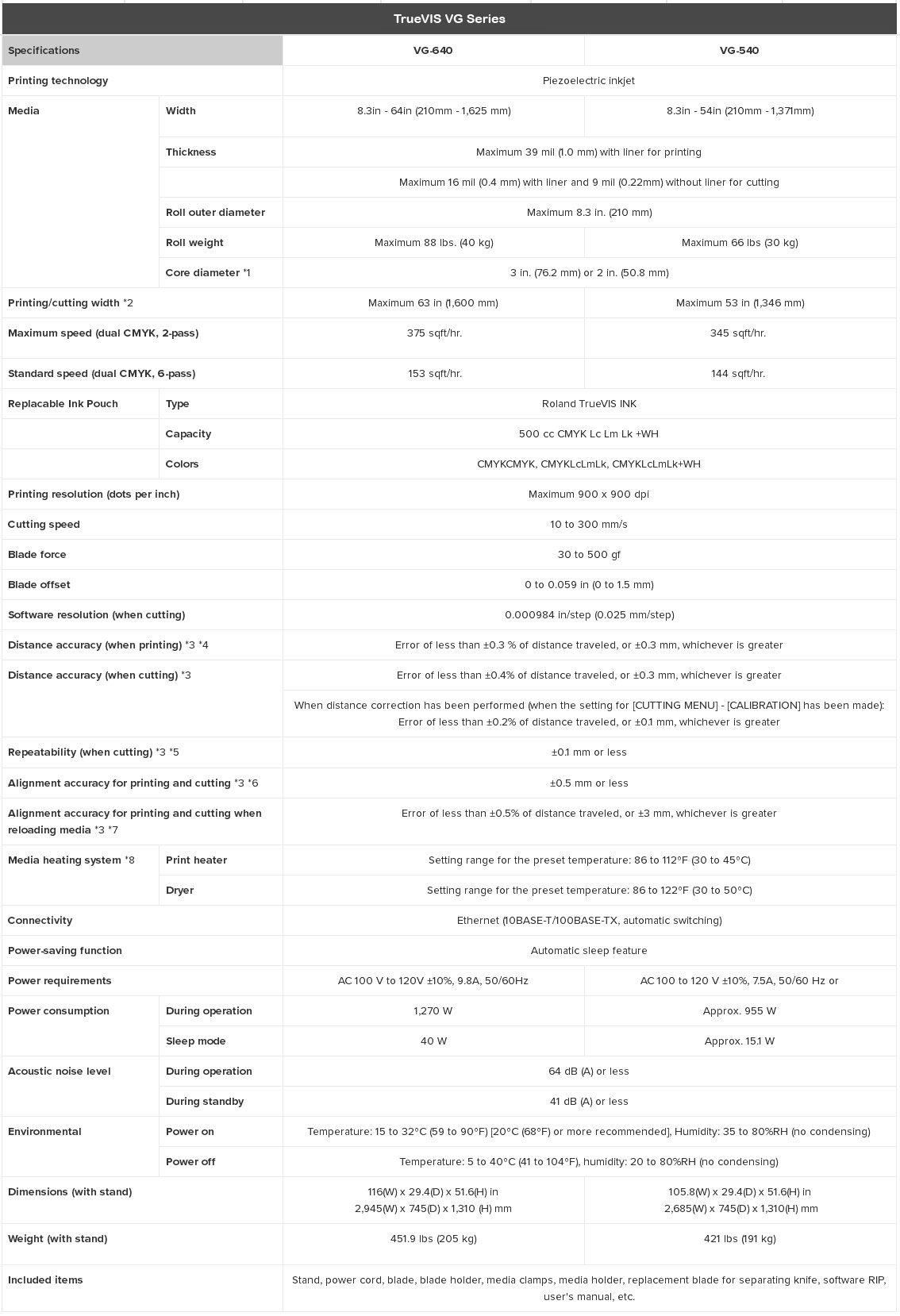

SPECIFICATION

*1 The media holder of this machine is exclusively for media with a paper tube core inner diameter of 3 inches. To use a 2 inch media core, please use the optionally available media flanges.

*2 The length of printing or cutting is subject to the limitations of the program.

*3 Using Roland specified media, loaded correctly, temperature: 25 ºC (77ºF), humidity: 50 %RH, all pinch rollers are used, 25 mm or more for both right and left margins and 35 mm or more front margin, excluding expansion or contraction of the media. and all correction and adjustment functions of this machine have been made properly. Not assured when the print heater or dryer is used.

*4 Using Roland specified media, print travel of 1m.

*5 [PREFEED] menu item must be set to "ENABLE," 64-inch and 54-inch models, media over 610 mm wide, and 4,000 mm long.

*6 Provided that media length is under 3,000 mm. Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media.

*7 Using Roland specified media, 64-inch and 54-inch models: data size: 1,000 mm in the media-feed direction, 1,600 mm in the carriage-movement direction.No lamination. Automatic detection of crop marks at 4 points when media is reloaded. During cutting, [PREFEED] menu item must be set to "ENABLE." Excludes the effects of slanted movement and of expansion and contraction of the media.

*8 Warm-up is required after powerup. This may require 5 to 20 minutes, depending on the operating environment. The preset temperature may fail to be reached depending on the ambient temperature and media width.
